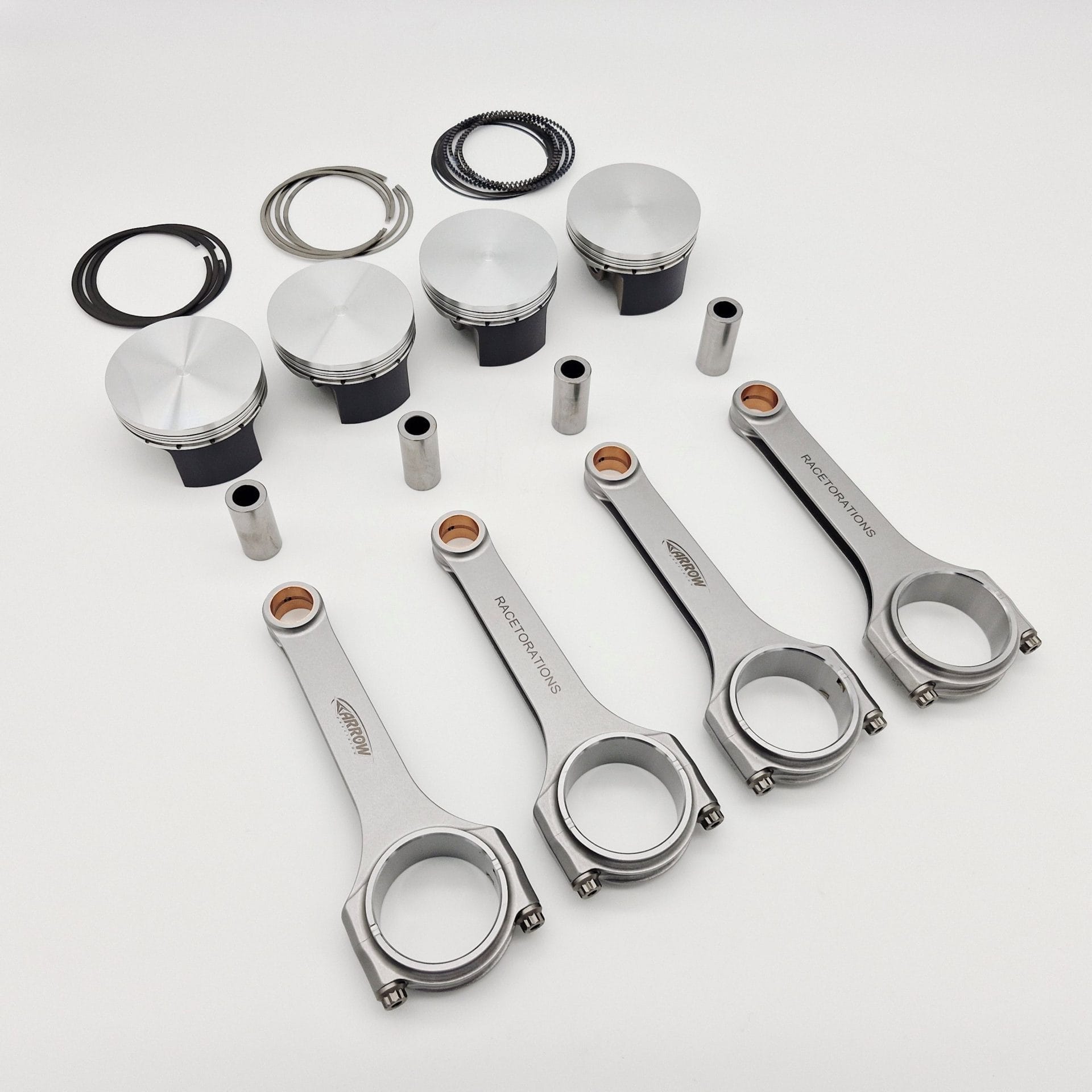

The Racetorations 87mm Slipper Piston & Steel Connecting Rod Set for TR2-4A & Morgan +4 is shown on a white background, featuring four slipper pistons, four steel rods, piston pins, and rings—essential engine components.

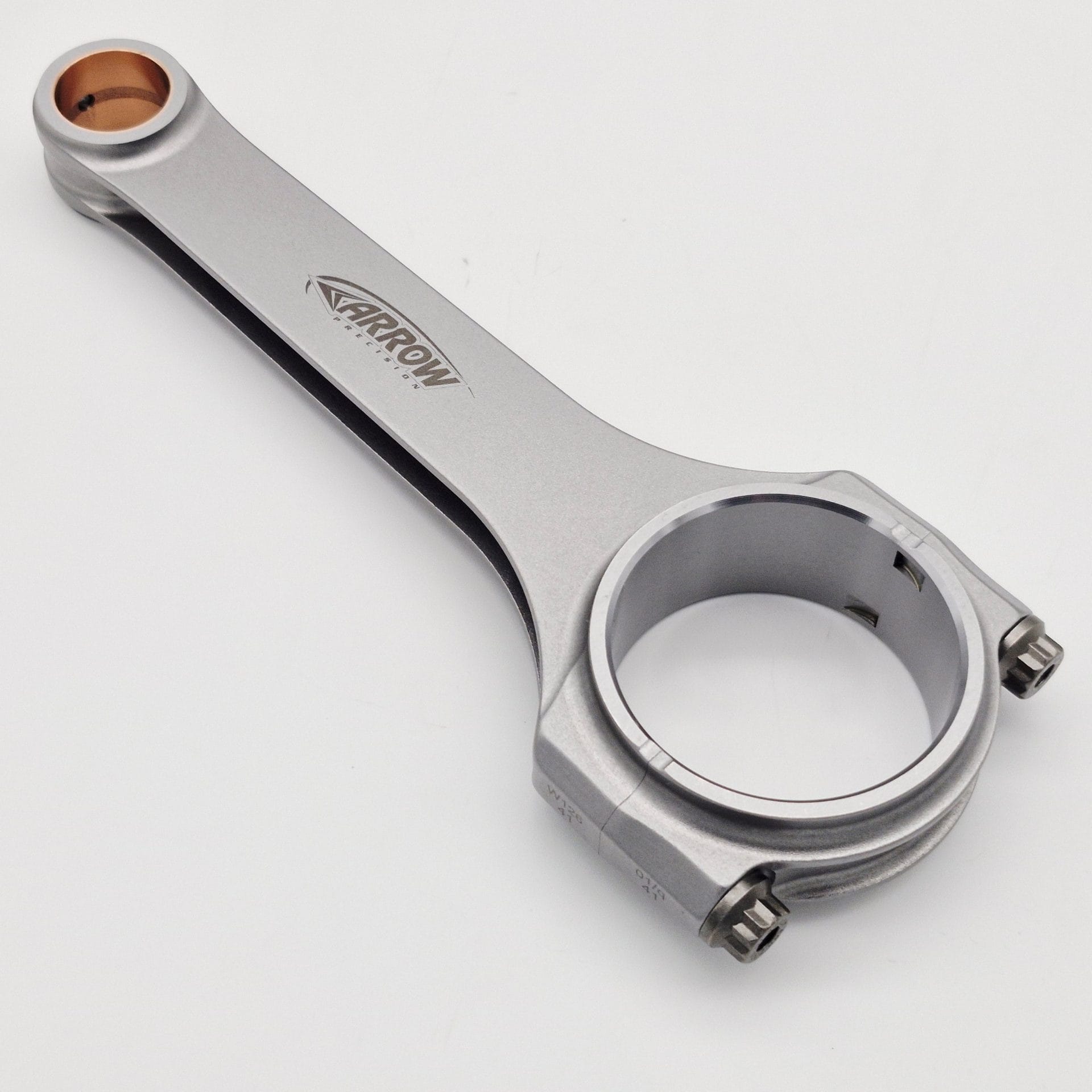

The Racetorations 87mm Slipper Piston & Steel Connecting Rod Set for TR2-4A & Morgan +4 includes a steel rod with bronze-bushed and bolted ends, "ARROW" logo on the shaft, shown on a white background.

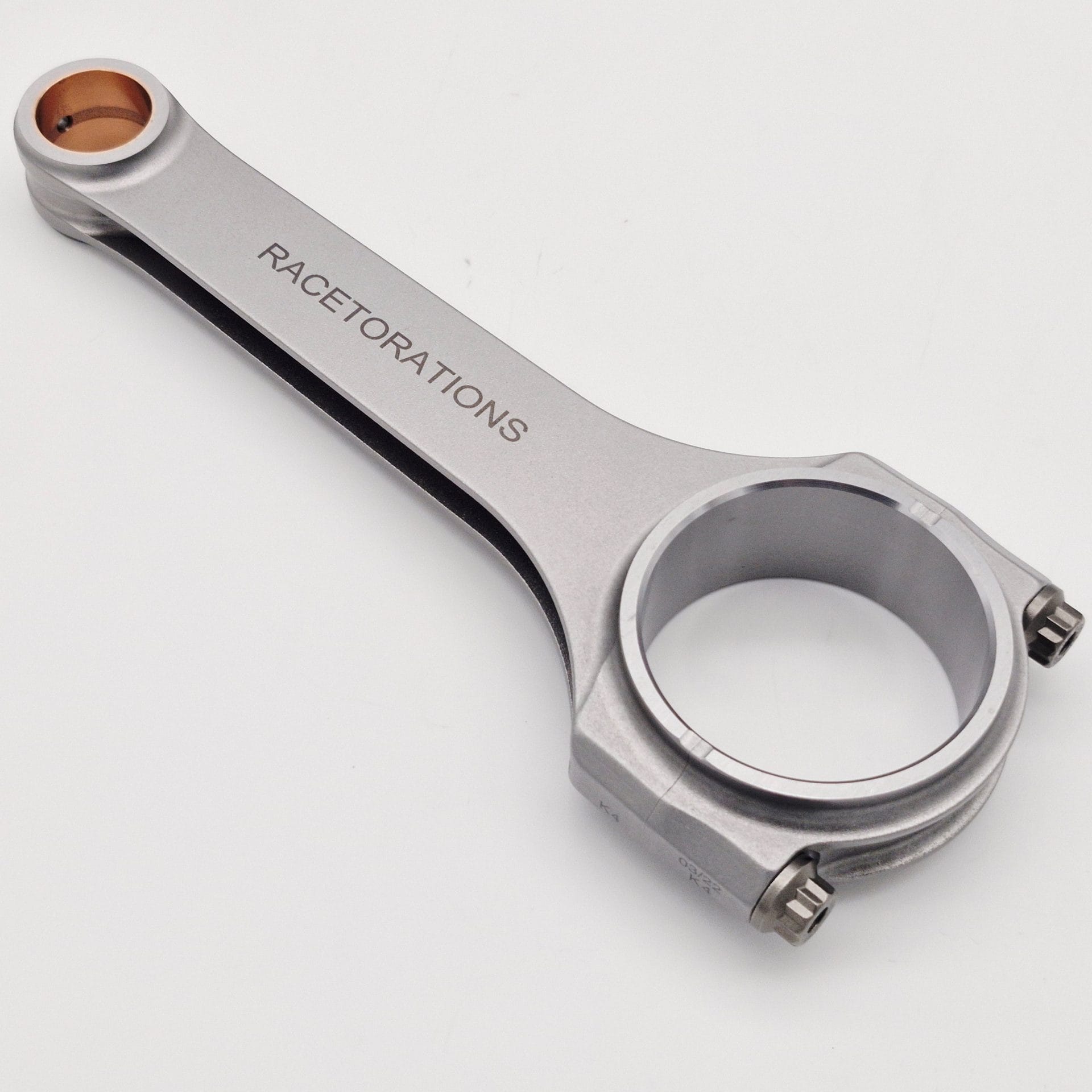

A Racetorations 87mm Slipper Piston & Steel Connecting Rod rests on a white surface, showing a bronze bushing and two bolts—designed for TR2-4A & Morgan +4 engines.

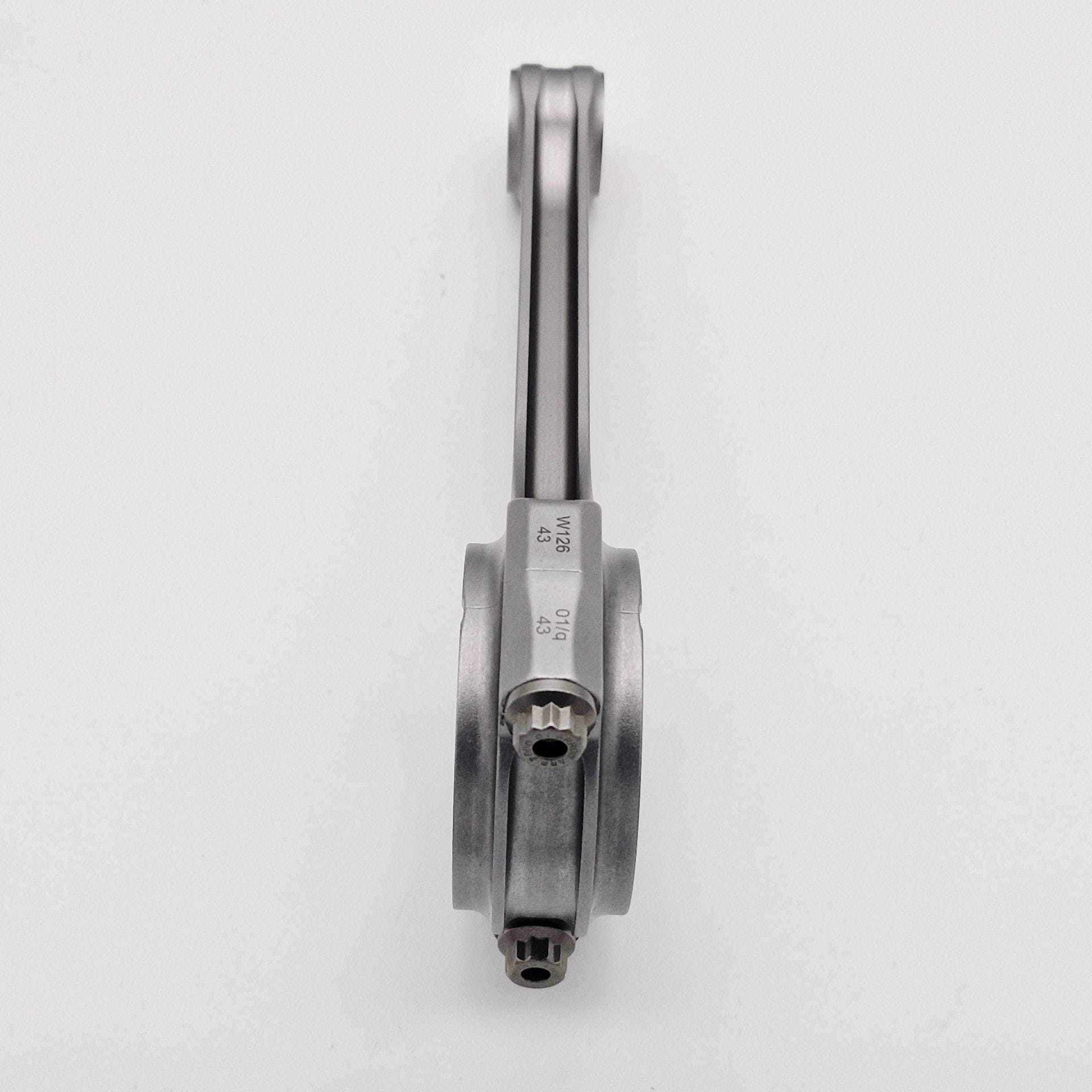

A Racetorations 87mm Slipper Piston & Steel Connecting Rod Set for TR2-4A & Morgan +4 is shown vertically on a plain white background, highlighting the side profile and gear-like ends suited for slipper piston use.

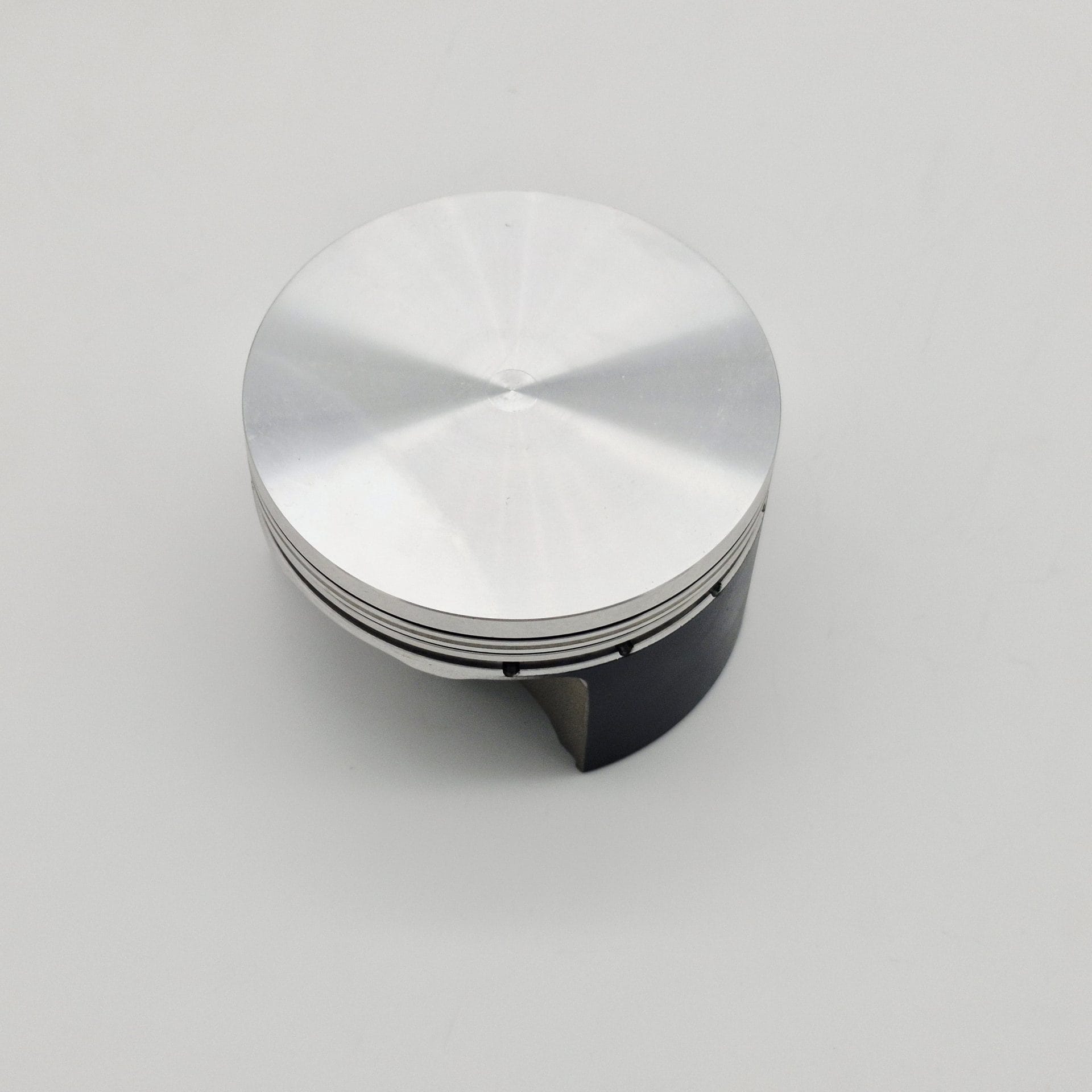

A Racetorations 87mm Slipper Piston & Steel Connecting Rod for TR2-4A & Morgan +4, featuring thin grooves and a shiny silver finish, rests on a plain white background, viewed from above at an angle.

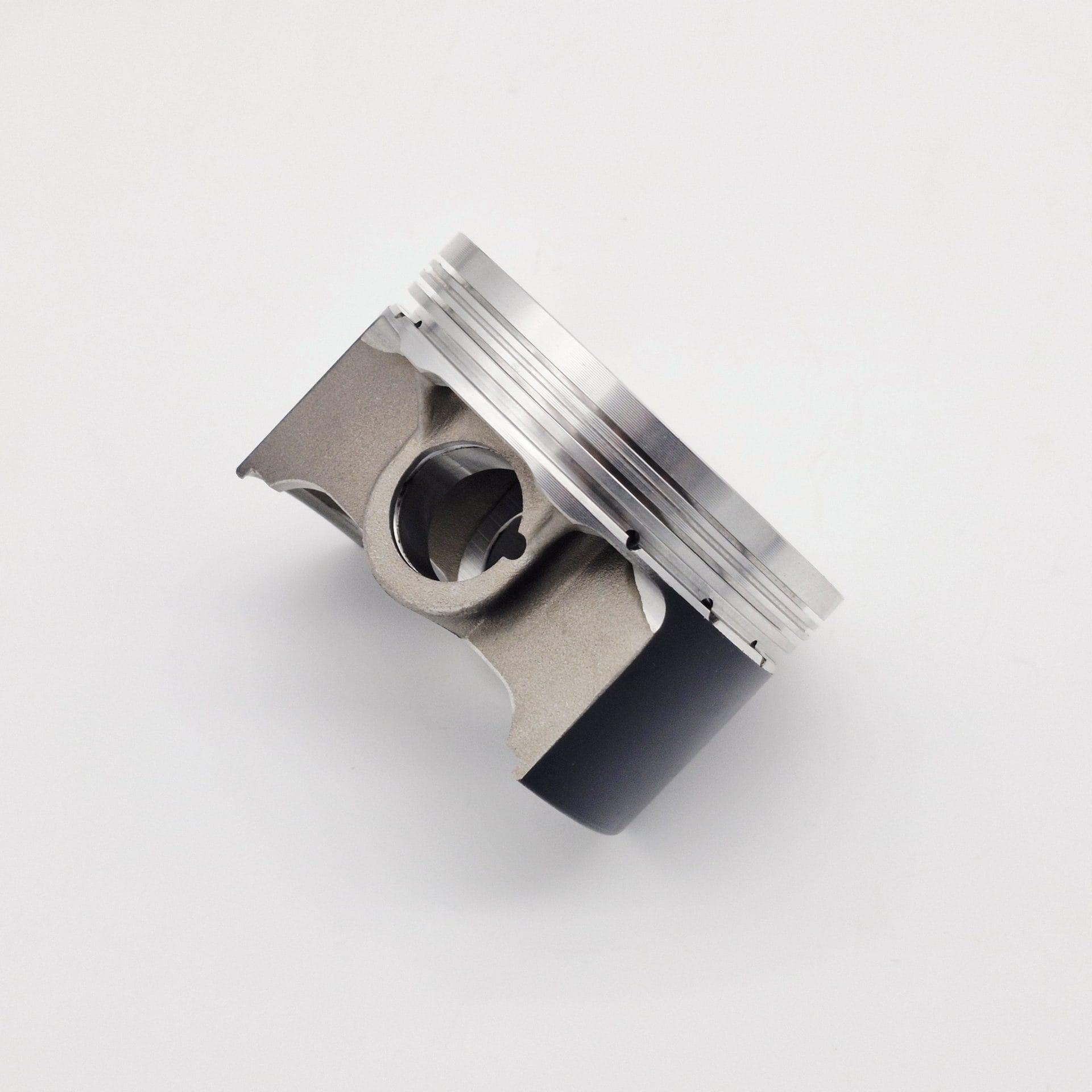

An 87mm Racetorations slipper piston with a silver top and dark lower section is shown against a white background, highlighting its grooves and mechanical details. Designed for TR2-4A & Morgan +4, it’s paired with a steel connecting rod.

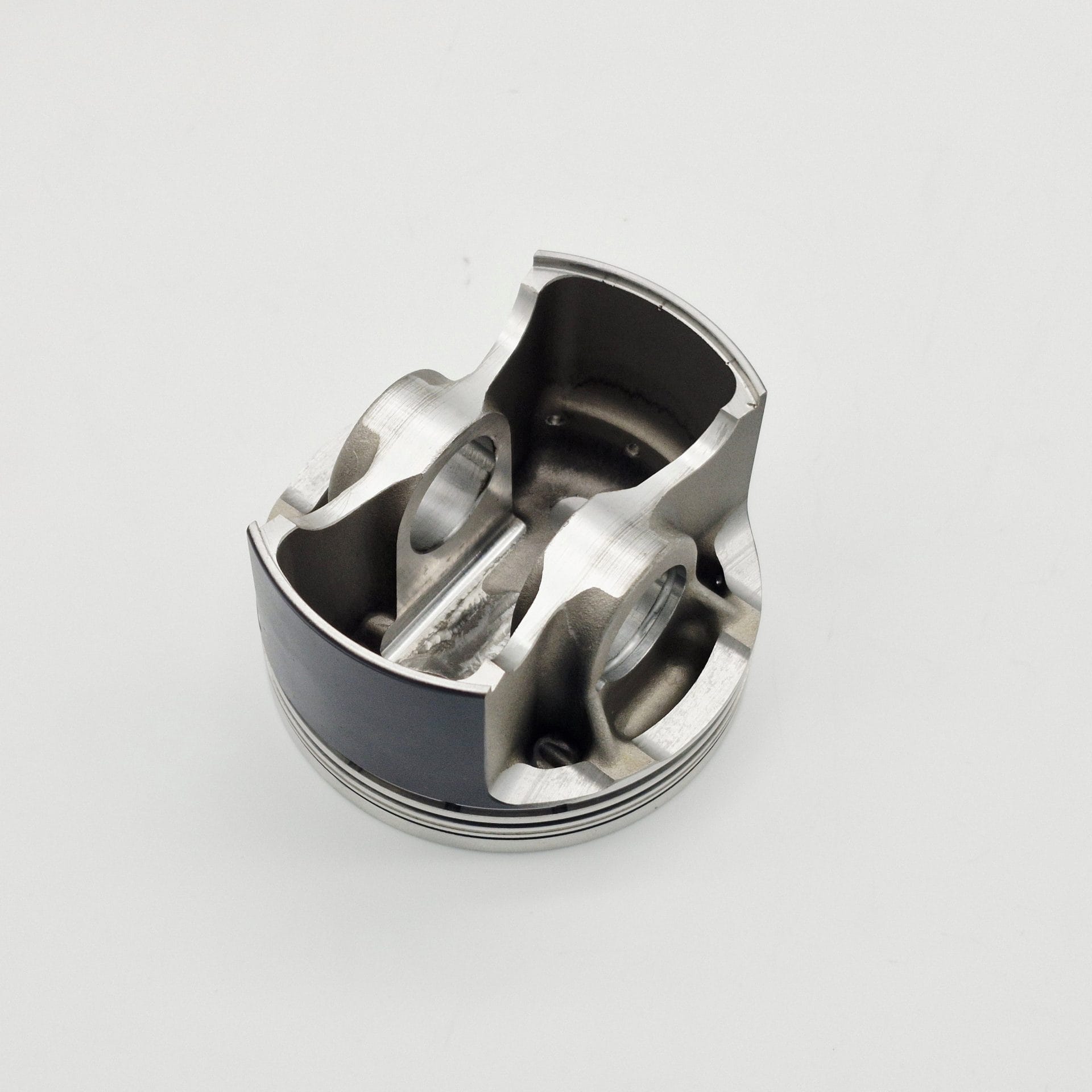

The Racetorations 87mm Slipper Piston & Steel Connecting Rod Set for TR2-4A & Morgan +4 features a smooth, metallic piston with grooves and holes, resting on a plain white surface.

Racetorations 87.2mm Slipper Piston & Steel Connecting Rod Set – TR2-4A & Morgan +4

£2,420.00 ex. VAT -

£2,904.00 inc. VAT

Racetorations 87.2mm Slipper piston & Arrow Precision Engineering steel connecting rod set suitable for TR2-4A & Morgan +4.

Connecting Rod Information

Designed by Racetorations and manufactured by the world renowned Arrow Precision Engineering in the UK. Set of 4 rods is over 1KG lighter than the original set while also being considerably stronger. Supplied with ARP 625 Plus Series big end bolts. Standard journal size but 7″ centre to centre length to allow for slipper pistons to be used. A must have item for any performance engine. Can be used with the standard crankshaft but we recommend our steel crankshaft BEN209-4STD.

Slipper Piston Information

87.2mm (+0.048″) billet slipper piston & ring set suitable for TR2-4A & Morgan +4 engines. This is largest piston size authorised by the FIA for use in race TR2-4A’s. High quality replacement for the original cast piston. As fitted to all our race engines. Supplied as a set of 4 with rings & gudgeon pins. Reduced rotating mass.



In stock

Part Number: BEN254 Categories: , , , , , Brand:
  • 87mm slipper piston & steel connecting rod set
  • Rods are designed by Racetorations and manufactured by the world renowned Arrow Precision Engineering in the UK
  • Set of 4 rods is over 1KG lighter than the original set while also being considerably stronger
  • 87.2mm (+0.048″) billet slipper piston & ring set suitable for TR2-4A & Morgan +4 engines
  • Complete set of 4 pistons, rings & gudgeon pin
  • This is largest piston size authorised by the FIA for use in race TR2-4A’s
  • As fitted to our Race engines

Additional information

Weight 5.0 kg
